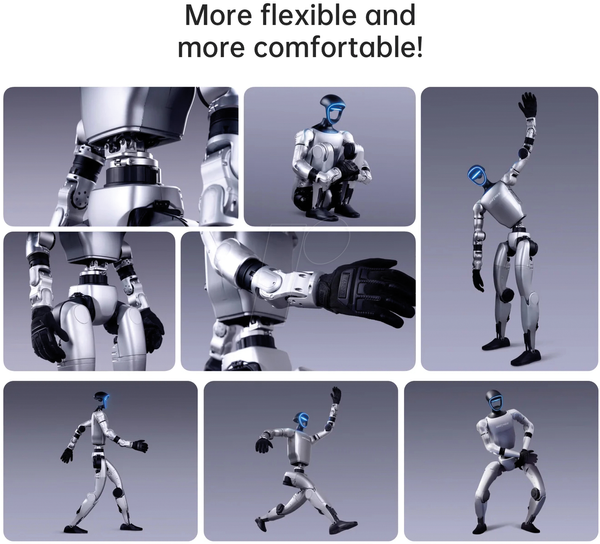

Unitree G1 - Humanoid robot

Unitree G1 - Compact humanoid robot for research & development

The Unitree G1 is a state-of-the-art humanoid robot that impresses with its compact design, high mobility and powerful sensors.
With 23-43 degrees of freedom and a weight of only approx. 35 kg, it offers a versatile platform for universities, research institutions and development teams working on robotics, AI and automation.

Thanks to its foldable design (approx. 1.32 m when set up, approx. 0.69 m when folded), the G1 is easy to transport and can be used flexibly.
The integrated sensor technology - including 3D LiDAR, depth camera and microphone array - enables precise perception of the environment and supports a wide range of applications such as human-robot interaction, AI training and dynamic motion control.

Notes on variants

• G1 Base: Basic version with 8-core CPU, 90 Nm knee joint torque, 2 kg arm payload - ideal for teaching and basic testing.
• EDU-U1 (standard version): Based on G1 Basic, 100 TOPS computing power (Nvidia Orin NX 16 GB), knee moment 120 Nm, arm payload 3 kg, 23 degrees of freedom, AI-capable secondary development.
• EDU-U2 (Advanced Version): Based on U1 with 3 DOF waist and 7 DOF per arm (29 degrees of freedom).
• EDU-U3: Based on U2, with two Dex3-1 three-finger hands (without tactile feedback, 43 degrees of freedom).
• EDU-U4: Like U3, but with tactile sensors on the Dex3-1 hands.
• EDU-U5: Variants with five-finger hands (Inspire Robots RH56DFQ-2L/R), without tactile sensors (41 degrees of freedom).
• EDU-U6: Like U5, but with tactile sensors on all fingers (41 degrees of freedom).
• EDU-U7: Based on EDU-U2 Advanced version, with two powerful five-finger Revo 2 Basic hands. 41 degrees of freedom.
• EDU-U8: Based on EDU-U1 Standard version, equipped with two Dex3-1 three-finger power-controlled hands (without tactile sensors). 37 degrees of freedom.
• EDU-U9: Like EDU-U8, but with tactile sensors (33 sensors per hand) in the Dex3-1 hands. 37 degrees of freedom.
• EDU-U10: Based on EDU-U1 standard version, with two five-finger Revo 2 Basic hands. 35 degrees of freedom.

Features

• Compact & lightweight: only approx. 35 kg in weight, foldable to a height of 0.69 m.
• 23 degrees of freedom: natural-looking movements thanks to flexible joints.
• High performance: knee joint torques up to 120 N-m, arm load up to 2 kg.
• Agile & dynamic: up to 2 m/s running speed, jumping performance up to 1.4 m.
• Intelligent sensor technology: 3D LiDAR, depth camera, microphone array, loudspeaker.
• Cost-efficient: attractive pricing compared to other humanoid platforms.

Application & benefits

• Robotics research: AI-supported training, motion learning, reinforcement learning.
• Teaching & training: practical use in universities and laboratories.
• Prototyping & development: platform for new algorithms, motion control and interaction scenarios.
• Demonstrations & showcases: for technology centers, exhibitions and presentations.

Technical specifications

• Height: 1,270 mm (set up) / 690 mm (folded)
• Weight: approx. 35 kg incl. battery
• Degrees of freedom: 23 - 43
• Knee joint torque: up to 90 N-m (EDU up to 120 N-m)
• Arm load: up to 2 kg (EDU up to 3 kg)
• Jumping performance: up to 1.4 m
• Speed: max. 2 m/s
• Range of motion: Hip pitch ±154°, roll -30°/+170°, yaw ±158° | knee 0-165° | waist ±155°
• Drive: PMSM motors with crossed roller bearings
• Sensors: 3D LiDAR (LIVOX MID-360), depth camera (Intel RealSense D435i), microphone array, loudspeaker
• Computing power: 8-core CPU (basic), optional Jetson Orin (EDU, 40-100 TOPS)
• Connectivity: WiFi 6, Bluetooth 5.2, RJ45, USB
• Battery: 13-S Lithium, 9000 mAh, hot-swappable, approx. 2 h runtime
• Software: UnifoLM AI framework, OTA updates

Please note
Further information can be found at https://www.unitree.com/g1
